Product Description

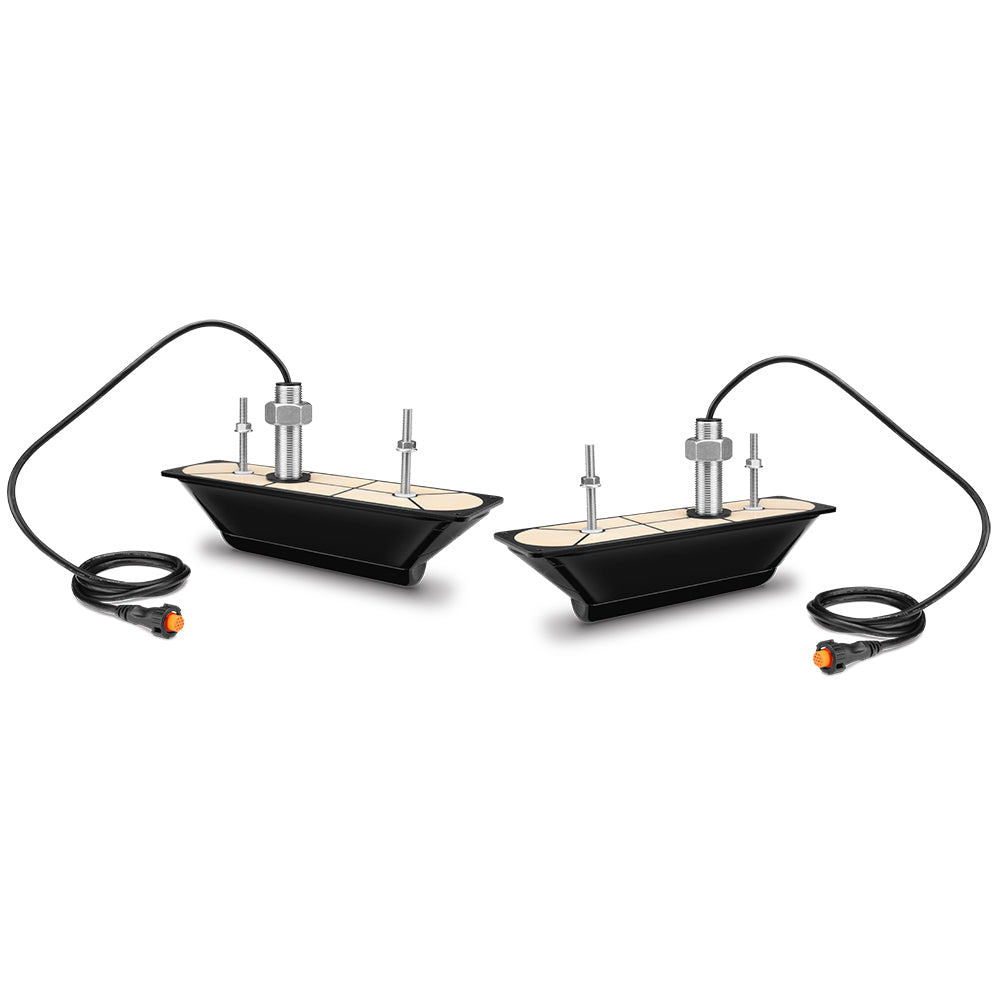

GT34UHD-THP Ultra HD Thru-Hull Transducer - Pair
Ultra High-Definition Sonar System Thru-hull Transducer
Add stunningly clear Ultra High-Definition ClearVĂ¼ and Ultra High-Definition SideVĂ¼ scanning sonar images to your compatible chartplotter via the GCVâ„¢ 20 sonar module. It includes 3 arrays, including a downward-facing element element — with frequencies ranging from 0.8 MHz (800 kHz) to 1.2 MHz (1,200 kHz) — and it’s recommended for hulls with up to a 5-degree deadrise angle.
Ultra High-Definition ClearVĂ¼ Scanning
This mode provides brilliant image clarity of structure and fish below your boat at greater depths than other high-frequency scanning sonars by putting more power on targets via a downward-facing element.
Ultra High-Definition SideVĂ¼ Scanning
This mode delivers stunningly clear images of structure and fish off to the sides of your boat. This makes it easy to scout a fishing area quickly, because you can see everything the first time with such amazing clarity.
Specifications:
- Frequency:
- Ultra High-Definition ClearVĂ¼: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz
- Ultra High-Definition SideVĂ¼: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz
- Power: 500W
- Beamwidth:
- Ultra High-Defintion ClearVĂ¼: 0.74° x 46°
- Ultra High-Defintion SideVĂ¼: 0.44° x 55°
- Maximum depth:
- Ultra High-Defintion ClearVĂ¼: 200' down
- Ultra High-Defintion SideVĂ¼: 125' sides, 250' total
- Depth/Speed/Temperature: Depth and Temperature
- Number of pins: 12-pin
- Cable length: 20'
- Supported deadrise/Transom angles: Up to 25° deadrise
WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Chirp: Non Traditional
- Cable Length (Feet): 20'
- Imaging: Down/Side
- Speed Included: No
- Pins: 12
- Mounting Style: Thru-Hull
- Temperature: Yes
- Box Dimensions: 5"H x 13"W x 14"L WT: 9.45 lbs
- UPC: 753759206369
