Product Description

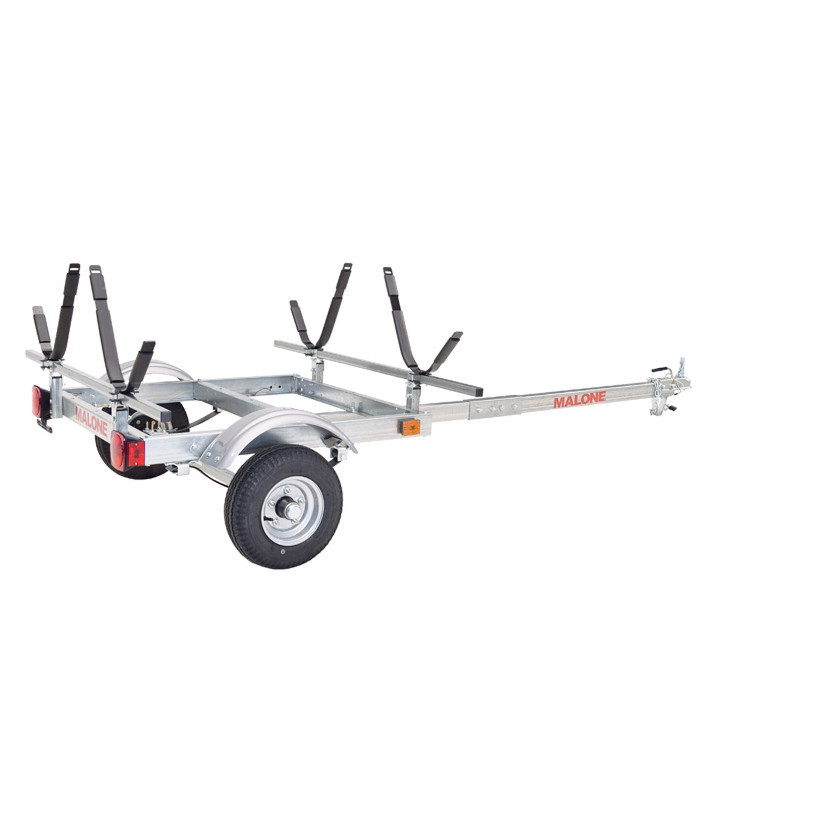

The EcoLight™ Sport Trailer, when bundled with a Malone carrier system, provides an excellent choice for safe and affordable kayak transport. We offer a selection of four different trailer/carrier packages to carry one, two or four kayaks.

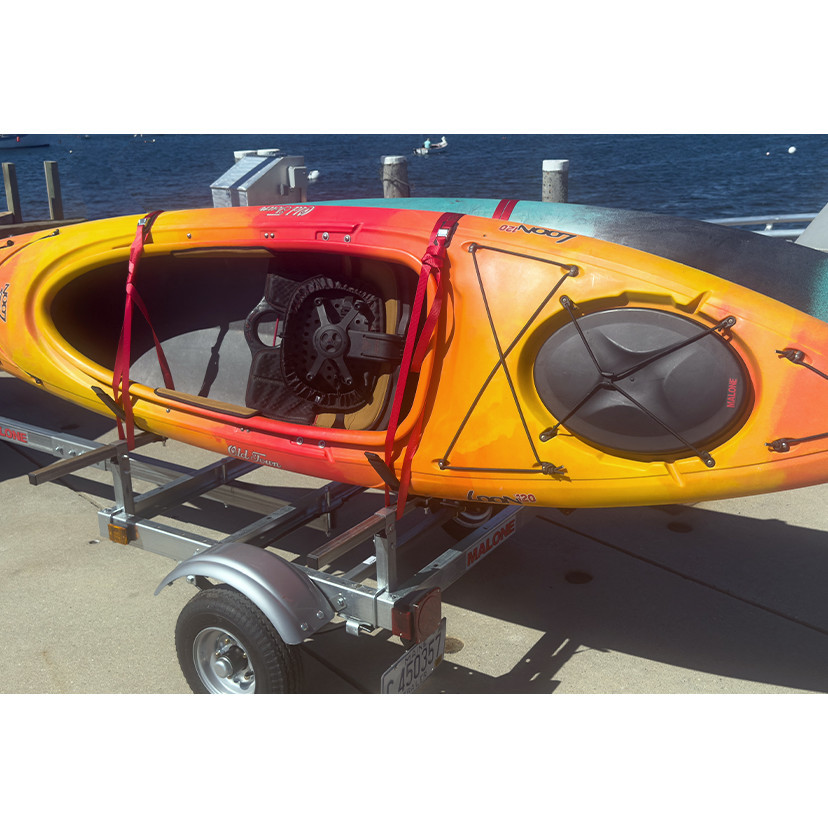

The MPG586XJ EcoLight™ Package is designed to carry two medium sized touring or recreational kayaks. Each trailer comes with two sets of J-style kayak carriers that work best with traditional V-style hulls.
Each unit is DOT and Transport Canada certified and proudly built in the USA for years of dependable use. Provides safe travel up to a maximum of 65 mph while transporting loads up to 400 lbs. Features a reinforced extra-long tongue, 58" wide steel load bars, molded fenders, 8" high-speed tires and a 2" receiver with lift handle. All parts and workmanship are guaranteed with a Five Year Limited Warranty. Assembles in 3-5 hours with common shop tools. Detailed assembly instructions included.
Features:
* Marine grade galvanized frame
* Padded J-style carriers with mounting hardware and load straps
* DOT approved submersible LED lighting
* 8" - five lug high-speed powder coated wheels
* Injection molded fenders
* 58" coated steel load bars
* 2pc extended tongue
* Flat four wire harness
* Tongue skid plate

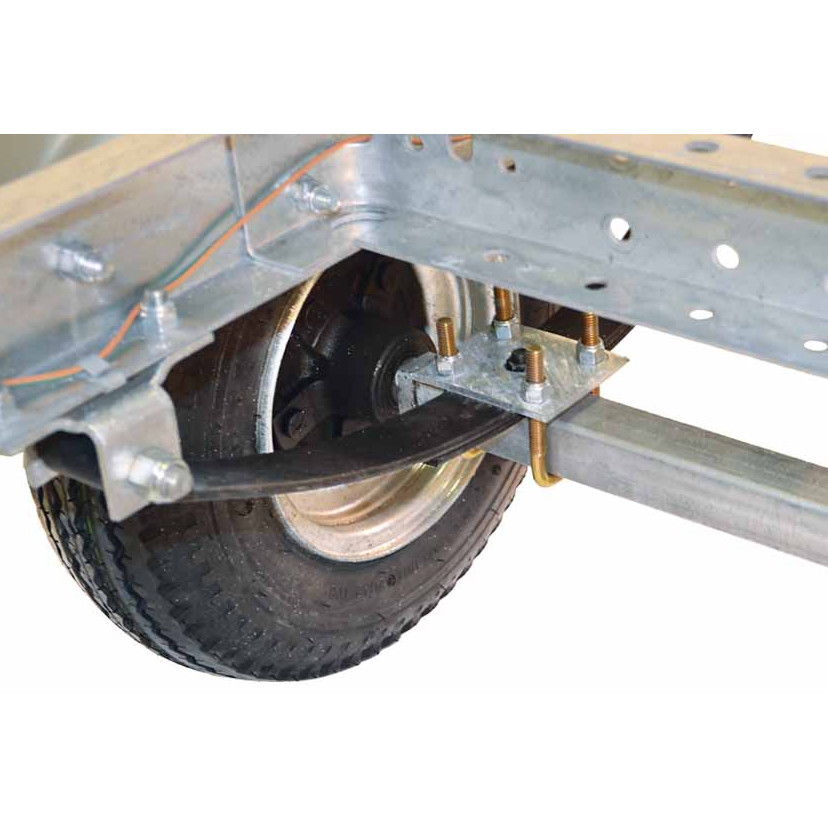

* Leaf spring suspension
* Galvanized heavy duty axle
* Five Year Limited Warranty
* Made in the USA
Specifications:
* Width: 58" (55" without cross bars)
* Frame Width Assembled (Without fenders): 40"
* Length: 10' 9"
* Weight: 145 lb. (Without accessories)
* Capacity: 400 lb. / 14' canoe or kayak
* Frame: Marine grade galvanized steel
* Required Ball Mount Size for Vehicle Attachment: 2"
* Ball Height: 14" From Ground - To Top Of Ball
* Wheel Specifications: 8" Diameter; Rated to 65 mph
* Tire Specifications: 4.80 / 4.00-8", Load Range B, (785 LB)
* Recommended Tire Pressure: 40 PSI, 90 PSI Max
* Tongue Weight (Unloaded): 12 lb
* Cross Bar Spread: 38.5" (Fixed)
* Height of Cross Bars from Ground: 26"
Installation:

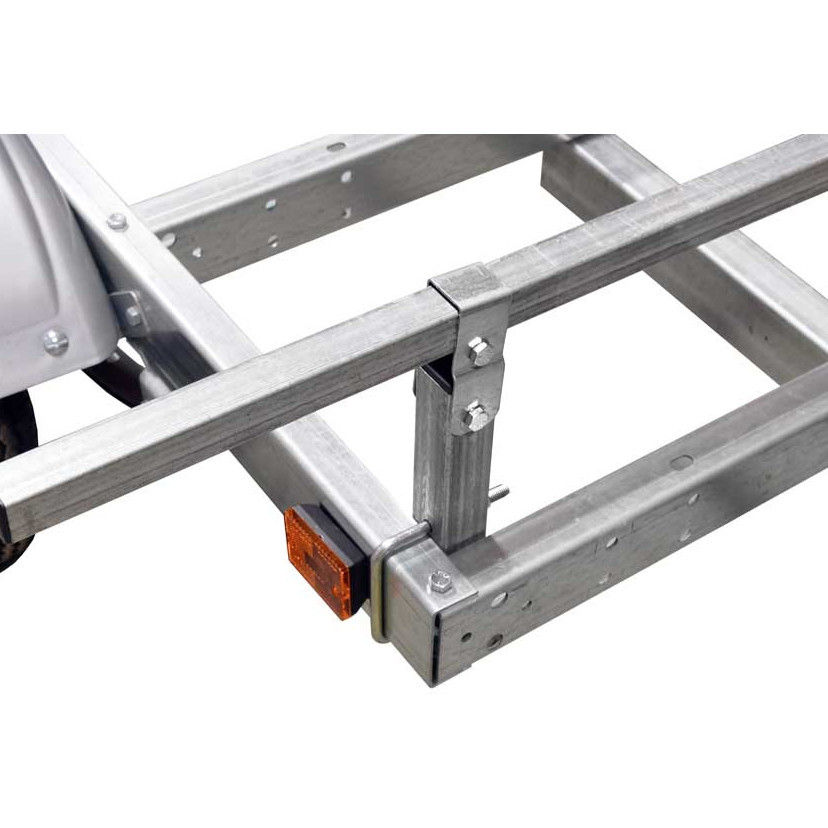

* Please note that the trailer load bar support system has been upgraded and some product imagery does not show the change.
* Review instructions and check all parts prior to assembly. Register your warranty prior to first time use.
* Note: The kayak carriers included with this package are designed "for trailer use only". Do not attempt to mount these carriers to any vehicle rooftop.
What’s In The Box:
* (2) Wheels & Tires

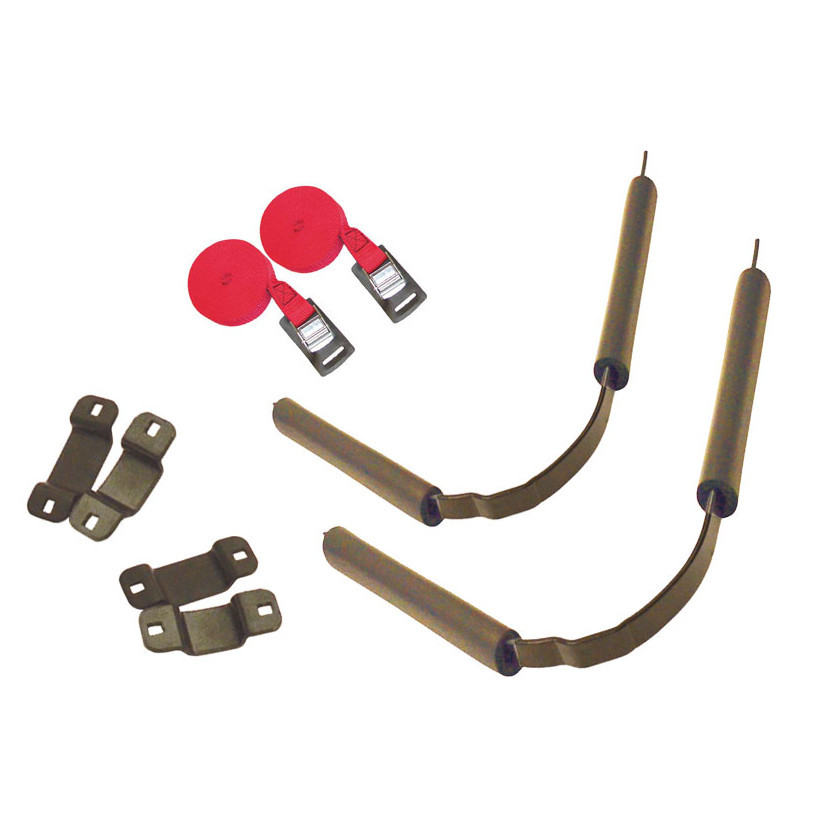

* (2) J-style Kayak Carriers with Hardware and Load Straps
* (1) 2pc Extended Tongue
* DOT Approved Lighting & Bearings
* Pre-Tested Electrical System
* Pre-Fitted Chassis Components
* Instruction Manuals & Registration Documentation
